Color / Parts｜UH-X - FMWORLD.NET : Fujitsu PC

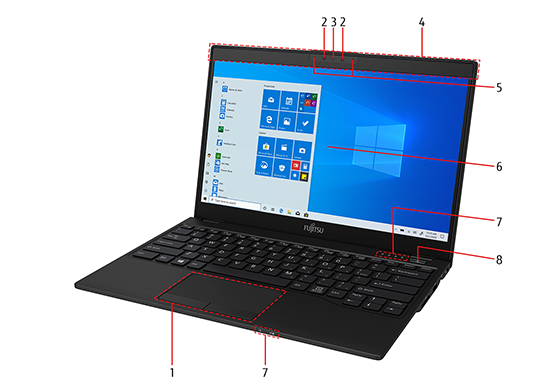

1. Touchpad
2. IR Receiver
3. Camera with facial recognition (Windows Hello Supported)
4. Antenna for both WiFi and Bluetooth
5. Built-in microphone
6. LCD display
7. Status LED
8. Power button（）

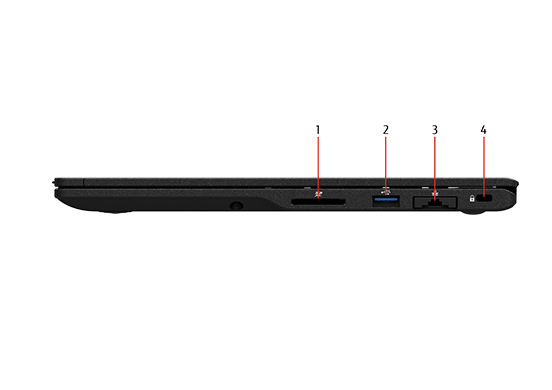

1. SD Card slot（）
2. USB 3.2 (Gen1) Type-A port（）[Note]
3. LAN port（）
4. Security slot（）
Note： Cannot use Type-C plugs as its shape is different.

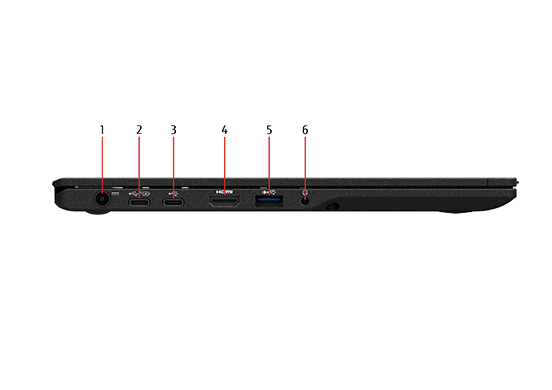

1. DC-IN connector（）
2. USB 3.2 (Gen 2) Type-C port
（）[Note 1] [Note 2]
3. USB 3.2 (Gen 1) Type-C port
（）[Note 1] [Note 3]
4. HDMI output port（）
5. USB 3.2 (Gen 1) Type-A port (supports power-off USB charging)（／）[Note 1] [Note 4]
6. Microphone/Line-in/Headphone/Line-out/Headset combo jack（）
Note 1： Depending on the shape of the plug, it may not be used simultaneously with the adjacent connector.
Note 2：
- Cannot use Type-A plugs as its shape is different.
- Compatible with USB Power Delivery (video output supported).
- Maximum 5 V/1.5 A power supply. Charge any device compatible with USB Power Delivery.
- Any device that can supply 7.5 W (5V/1.5 A) or more can charge the laptop. However, operation of all compatible devices is not guaranteed.
- Transfer speeds (theoretical value) of the connected USB compatible device are as follows.
  - USB 3.2 (Gen 2) compatible devices: Max. 10 Gbps
  - USB 3.2 (Gen 1) and USB 3.0 compatible devices: Max. 5 Gbps
  - USB 2.0 compatible devices: Max. 480 Mbps
Note 3：
- Cannot use Type-A plugs as its shape is different.
- Compatible with USB Power Delivery (video output not supported).
- Maximum 5 V/1.5 A power supply. Charge any device compatible with USB Power Delivery.
- However, operation of all compatible devices is not guaranteed.
- Transfer speeds (theoretical value) of the connected USB compatible devices are as follows.
  - USB 3.2 (Gen1) and USB 3.0 compatible devices: Max. 5 Gbps
  - USB 2.0 compatible devices: Max. 480 Mbps
Note 4： Cannot use Type-C plugs as its shape is different.
